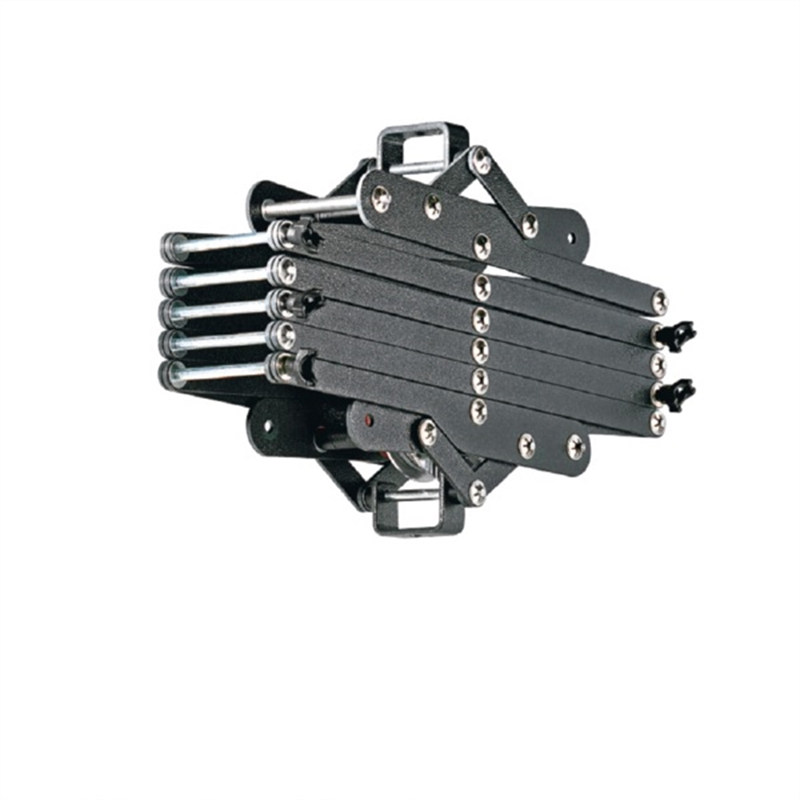

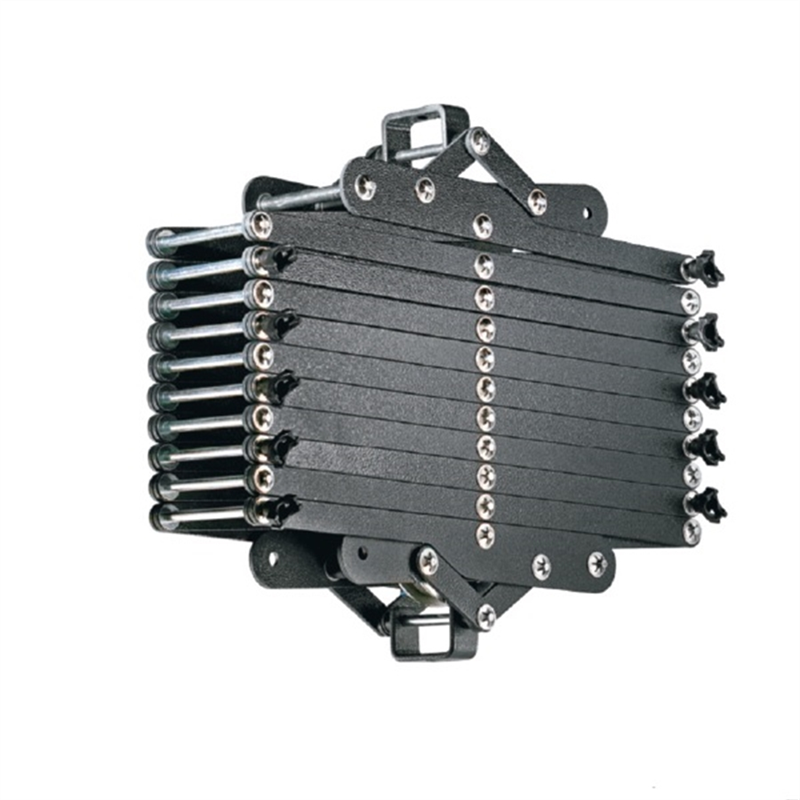

Friction Pantograph - Top 2C and Top 4C
|
0 new and 1 used
About this master product page
This page contains general information about the product. To purchase, please view the available listings below.
Product details
Brand

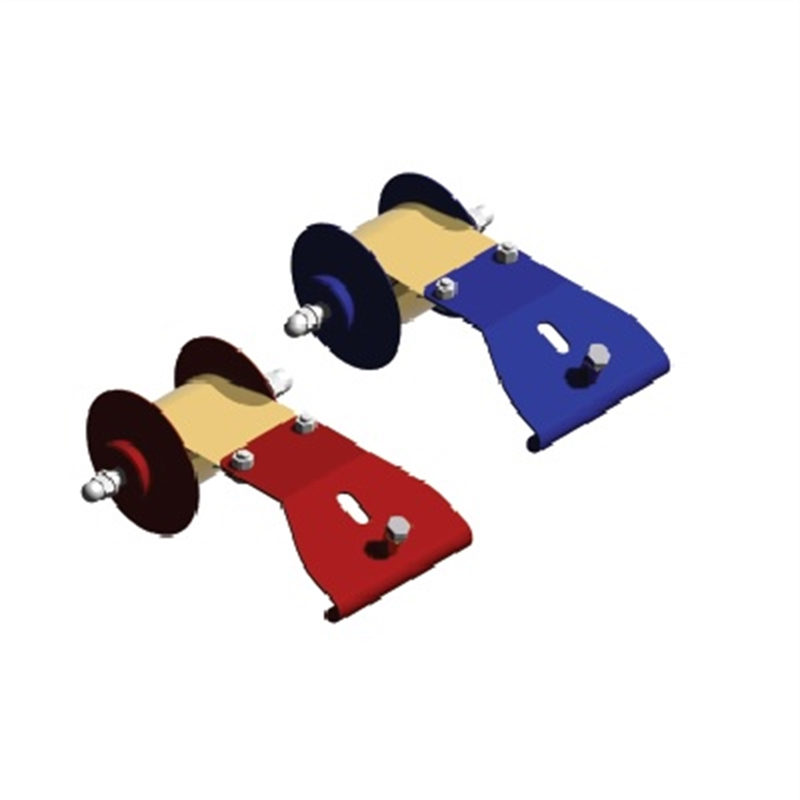

The innovative design of the pantograph allows lights to be placed closer to the ceiling than ever before. A complete new range of top and bottom attachments have been designed to reduce at minumum the closed length. Entirely produced in Aluminum (P-Al MgSi UNI3569) and according to DIN 15560-46 it is available in two different extension: 2 m (79") and 3.8 m (150") long. The load is supported by a steel cable of 2 mm diameter (safety factor 12). Loads up to 12 kg (26.4 Lbs) can be supported by t...
