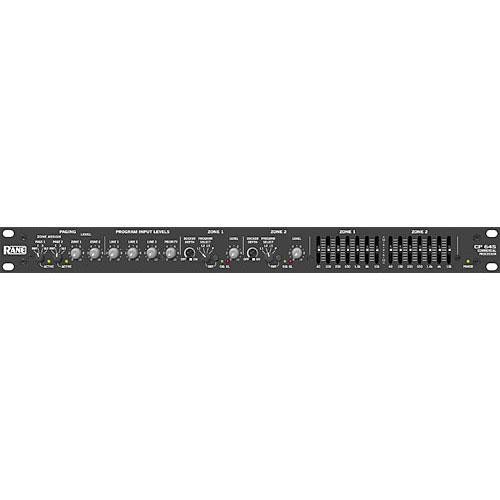

CP 64S Commercial Processor

PlaceholderPlaceholder

The CP 64S is a versatile commercial preamplifier designed for use in restaurants, bars, health clubs and offices. The CP 64S is capable of serving two independent Zones. Two gated Paging inputs and four Program inputs are provided. Ports are provided for expansion of Page, Program or Zone signals. Four levels of priority are supported: * Priority Page * Non-Priority Page * Priority Program * Non-Priority Program The versatility of the CP 64S allows a wide variety of system configurations while providing simple and intuitive controls. Two gated Paging Inputs capable of receiving mic or line level input are provided. Each features independent Mic/Line Pad, Gain Trim, detector Threshold, Zone Assign and Zone Level controls. Internally selectable phantom power is provided for each input. Each Paging input may be summed Pre- or Post- Zone Level control to allow setting Paging Level independent of Zone Level. An internal Paging Priority switch allows a “master” pager to override non-priority paging in its assigned zones, while allowing true dual zone independent paging. If no Paging Priority is selected, the Paging inputs mix together for applications like karaoke. Four stereo Program inputs are provided with independent Input Level controls. Any one of the four Program inputs may be independently assigned in each Zone. One of the Program inputs is a gated Priority Program input. When signal is detected at its input, it overrides any non-priority Program selection in the assigned Zones. The Priority detector features internal, adjustable Threshold and Release-Time controls. The CP 64S has two Zone outputs: Zone 1 is stereo: Zone 2 is mono. Each Zone features independent: * Level * Program Select * Ducker On/Off * Ducker Depth * Servo-Locked-Limiter™ * 7 Band EQ (±12 dB) Versatile wired remote control interface ports are provided for Paging assignment, Zone Level and Zone Program source selection. Paging Zone and Source/Volume remote controls are available as accessories. Many options allow the installer to determine exactly which controls are employee accessible. The SCP 2S is an optional security cover for the CP 64S’s front panel EQ section. Any or all other front panel knobs can be removed and replaced with hole plugs -- six are included with the SCP 2S. Front panel Ducker Depth controls are screw driver adjust. The remote controls allow blank Decora™ plates to be remote control security covers. The remote knobs can also be individually replaced with hole plugs. The CP 64S improves upon the CP 64 with a universal voltage internal power supply. All other features are identical.

No Listings Available

Stock Brands : Rane

No Listings Available

DESCRIPTION

The CP 64S is a versatile commercial preamplifier designed for use in
restaurants, bars, health clubs and offices. The CP 64S is capable of
serving two independent Zones. Two gated Paging inputs and four Program
inputs are provided. Ports are provided for expansion of Page, Program
or Zone signals. Four levels of priority are supported:
* Priority
Page
* Non-Priority Page
* Priority Program
* Non-Priority
Program
The versatility of the CP 64S allows a wide variety of system
configurations while providing simple and intuitive controls.
Two gated
Paging Inputs capable of receiving mic or line level input are provided.
Each features independent Mic/Line Pad, Gain Trim, detector Threshold,
Zone Assign and Zone Level controls. Internally selectable phantom power
is provided for each input. Each Paging input may be summed Pre- or
Post- Zone Level control to allow setting Paging Level independent of
Zone Level. An internal Paging Priority switch allows a “master” pager
to override non-priority paging in its assigned zones, while allowing
true dual zone independent paging. If no Paging Priority is selected,
the Paging inputs mix together for applications like karaoke.
Four
stereo Program inputs are provided with independent Input Level
controls. Any one of the four Program inputs may be independently
assigned in each Zone. One of the Program inputs is a gated Priority
Program input. When signal is detected at its input, it overrides any
non-priority Program selection in the assigned Zones. The Priority
detector features internal, adjustable Threshold and Release-Time
controls.
The CP 64S has two Zone outputs: Zone 1 is stereo: Zone 2 is
mono. Each Zone features independent:
* Level
* Program Select
* Ducker On/Off
* Ducker Depth
* Servo-Locked-Limiter™
* 7
Band EQ (±12 dB)
Versatile wired remote control interface ports are
provided for Paging assignment, Zone Level and Zone Program source
selection. Paging Zone and Source/Volume remote controls are available
as accessories.
Many options allow the installer to determine exactly
which controls are employee accessible. The SCP 2S is an optional
security cover for the CP 64S’s front panel EQ section. Any or all other
front panel knobs can be removed and replaced with hole plugs — six are
included with the SCP 2S. Front panel Ducker Depth controls are screw
driver adjust. The remote controls allow blank Decora™ plates to be
remote control security covers. The remote knobs can also be
individually replaced with hole plugs.
The CP 64S improves upon the CP
64 with a universal voltage internal power supply. All other features
are identical.
