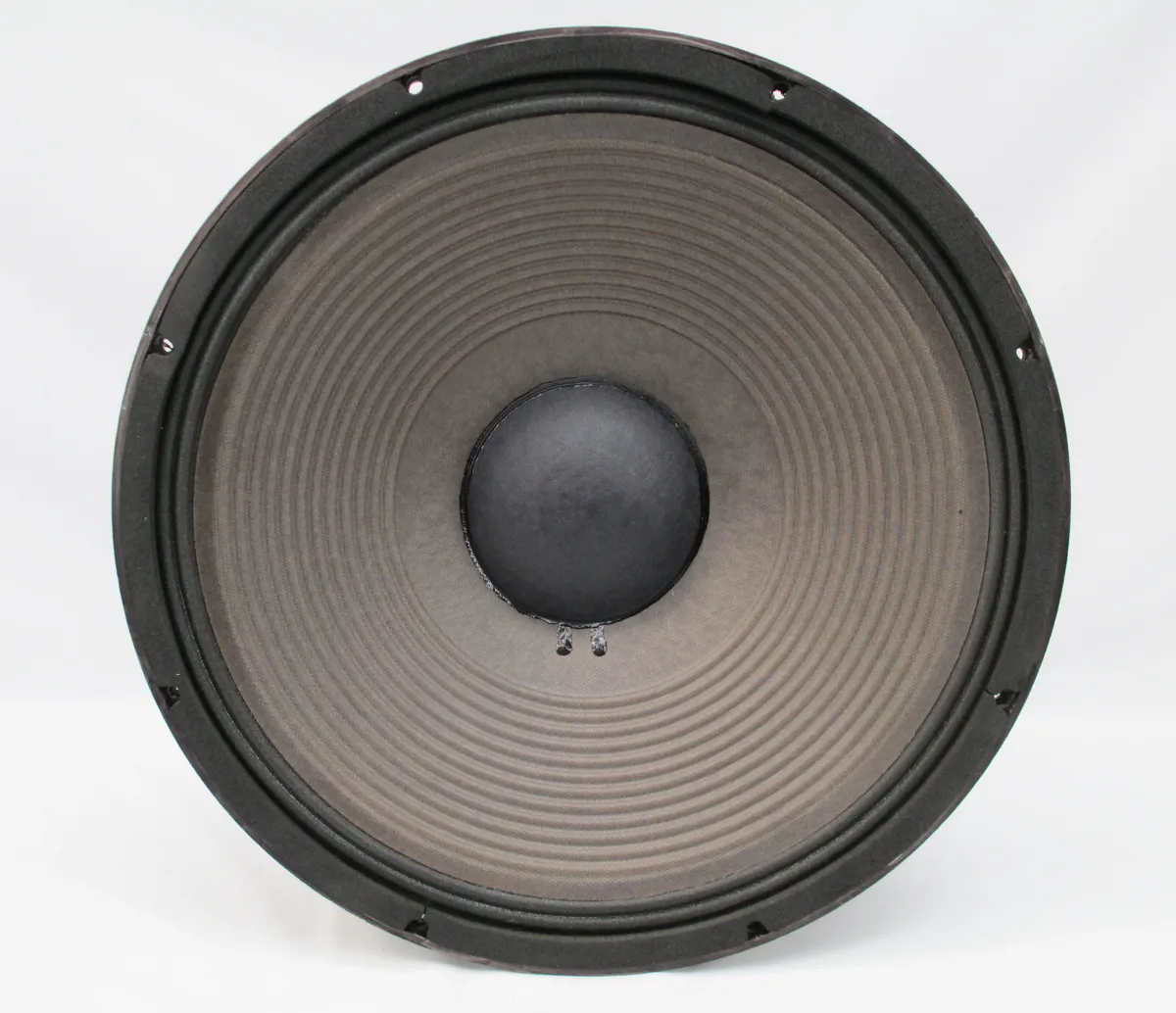

Model 2225H / 2225J Low Frequency Transducer

$92.00 $92.00

The JBL Model 2225H / J represents JBL’s latest engineering developments in low frequency driver design. Specifically designed for both horn-loaded and vented box enclosures, it has the ruggedness to withstand high-power sound reinforcement use. The extended length of the voice coil allows increased linear travel, and carefully selected suspension elements provide an optimum balance of motor and suspension forces to produce tight, accurate transient characteristics and complete freedom from dynamic instabilities. The choice of surround material and damping treatment provides an optimum termination for the cone edge, reducing distortion and allowing a smooth high frequency response that permits higher crossover frequencies than normally specified for a 380 mm driver.

The 2225H / J incorporates a heavy cast aluminum frame to resist deformation and aid in heat dissipation. The magnetic structure features JBL’s unique Symmetrical Field Geometry (SFG) design to reduce second harmonic distortion to inconsequential levels. The 100 mm (4 in) diameter voice coil benefits from new adhesive technology and an optimized coil-former construction of aluminum, plastic, and high temperature paper for increased power capacity. Extremely tight manufacturing tolerances also contribute to the high performance and linear frequency response. The driver is available as the 2225H with an impedance of 8 ohms or as the 22251 with a 16-ohm impedance.

8 Available:   0 New | 8 Used

Stock Categories : Other Audio Items  Pro Audio  Speakers & Drivers

Stock Brands : JBL

View Listings:
Placeholder

2225 15' driver

ID: 137747
Condition: Good
Warranty: 48 Hours

8 Available
Placeholder

2225 15' driver

ID: 137747
Condition: Good
Warranty: 48 Hours

8 Available

DESCRIPTION

The JBL Model 2225H / J represents JBL’s latest engineering
developments in low frequency driver design. Specifically designed for
both horn-loaded and vented box enclosures, it has the ruggedness to
withstand high-power sound reinforcement use. The extended length of
the voice coil allows increased linear travel, and carefully selected
suspension elements provide an optimum balance of motor and suspension
forces to produce tight, accurate transient characteristics and
complete freedom from dynamic instabilities. The choice of surround
material and damping treatment provides an optimum termination for the
cone edge, reducing distortion and allowing a smooth high frequency
response that permits higher crossover frequencies than normally
specified for a 380 mm driver.

The 2225H / J incorporates a heavy cast aluminum frame to resist
deformation and aid in heat dissipation. The magnetic structure
features JBL’s unique Symmetrical Field Geometry (SFG) design to
reduce second harmonic distortion to inconsequential levels. The 100
mm (4 in) diameter voice coil benefits from new adhesive technology
and an optimized coil-former construction of aluminum, plastic, and
high temperature paper for increased power capacity. Extremely tight
manufacturing tolerances also contribute to the high performance and
linear frequency response. The driver is available as the 2225H with
an impedance of 8 ohms or as the 22251 with a 16-ohm impedance.
