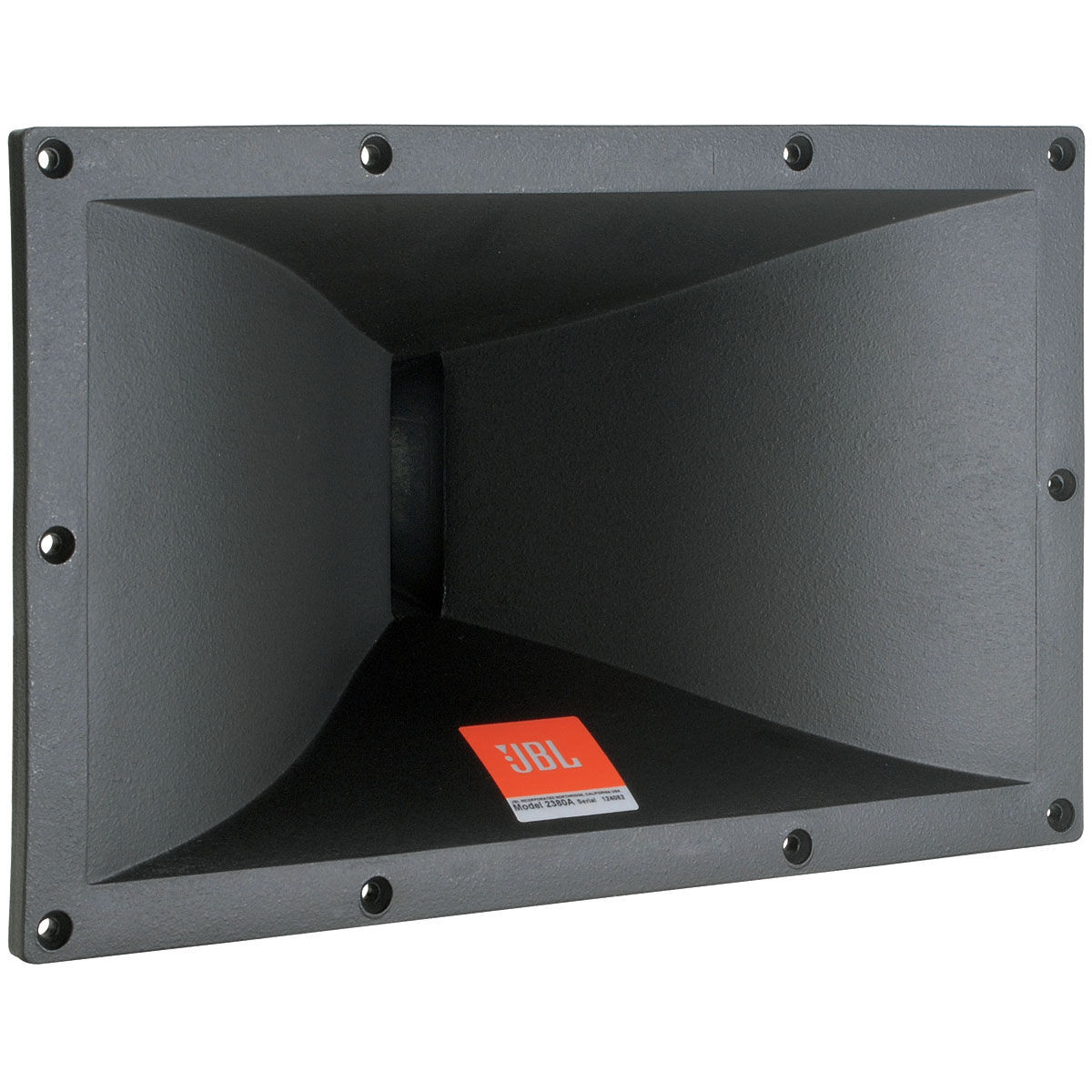

2380A 90°x40° Flat-Front Bi-Radial Horns

$868.00 $868.00

Flat-Front Bi-Radial horns are designed for flush cabinet mounting or compact cluster applications. With various coverage angles available, these horns provide uniform on and off axis frequency response from 400-500 Hz to beyond 16 kHz. The horns' small vertical mouth dimension (just slightly larger than the compression driver used to drive each horn) allows very compact single and multiple horn/driver systems to be put together.  In addition, the exceptionally consistent horizontal dispersion eliminates the midrange narrowing and high frequency beaming problems typically associated with conventional horn designs. The need for horn overlapping is minimized and lobing and comb filter effects are virtually eliminated.

Computer-aided design techniques were used to derive the horn contours in the horizontal and vertical planes. Utilizing sidewall contours based on a polynomial power series formula, the horn design yields smooth response, low distortion, and even coverage. This design avoids the performance disadvantages of horns that feature sharp flare transitions and flat sidewalls. The BiRadial compound flare configuration provides constant coverage over defined, solid angles. To ensure light weight, superior strength, and freedom from resonances, the horn bell is constructed of molded structural foam.

2380A 90°x40° Horn

  • 90° x 40° nominal dispersion
  • 49 mm (2 in) throat entry
  • 112 dB sensitivity (1W/1m with 2446H driver)
  • 500 Hz usable low frequency limit
  • Uniform on- and off-axis frequency response
  • Precise horizontal and vertical pattern control
  • Net weight: 2.2 kg (6 lb)

14 Available:   0 New | 14 Used

Stock Categories : Other Audio Items  Pro Audio  Speakers & Drivers

Stock Brands : JBL

View Listings:
Placeholder

2380A 2" 90 x 40 degree FLAT FRONT BI-RADIAL HORN

ID: 107255
Condition: Excellent
Warranty: Factory

14 Available
Placeholder

2380A 2" 90 x 40 degree FLAT FRONT BI-RADIAL HORN

ID: 107255
Condition: Excellent
Warranty: Factory

14 Available

DESCRIPTION

Flat-Front Bi-Radial horns are designed for flush cabinet mounting or compact cluster applications. With various coverage angles available, these horns provide uniform on and off axis frequency response from 400-500 Hz to beyond 16 kHz. The horns’ small vertical mouth dimension (just slightly larger than the compression driver used to drive each horn) allows very compact single and multiple horn/driver systems to be put together.  In addition, the exceptionally consistent horizontal dispersion eliminates the midrange narrowing and high frequency beaming problems typically associated with conventional horn designs. The need for horn overlapping is minimized and lobing and comb filter effects are virtually eliminated.

Computer-aided design techniques were used to derive the horn contours in the horizontal and vertical planes. Utilizing sidewall contours based on a polynomial power series formula, the horn design yields smooth response, low distortion, and even coverage. This design avoids the performance disadvantages of horns that feature sharp flare transitions and flat sidewalls. The BiRadial compound flare configuration provides constant coverage over defined, solid angles. To ensure light weight, superior strength, and freedom from resonances, the horn bell is constructed of molded structural foam.

2380A 90°x40° Horn

  • 90° x 40° nominal dispersion
  • 49 mm (2 in) throat entry
  • 112 dB sensitivity (1W/1m with 2446H driver)
  • 500 Hz usable low frequency limit
  • Uniform on- and off-axis frequency response
  • Precise horizontal and vertical pattern control
  • Net weight: 2.2 kg (6 lb)
