DESCRIPTION

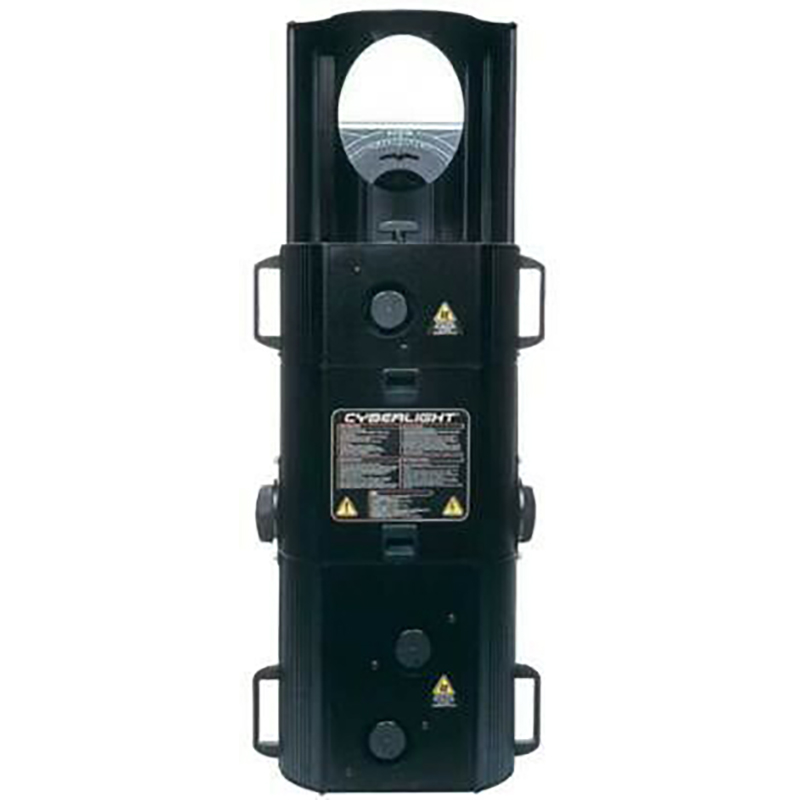

Cyberlight® set the standard for moving mirror fixtures. It’s become
the industry workhorse for its features, brightness and reliability.
Still, probably the most heavily utilized moving mirror light you will find.

• Motorized variable frost
• Field angle up to 36°
•
Variable zoom (selectable: 13°-22° or 16°-26°)
• Motorized
variable iris
• Selectable diffusion
• Full optical dimming
and fade to black
• Mirror head pan and tilt: 170° by 110°
•
Infinitely variable dichroic subtractive color mixing system
•
Eight position indexed color wheel with a versatile selection of
richly saturated dichroic colors plus white
• Upward, downward
and centered color correction
• Eight indexed gobo system has
three fixed and four replaceable metal gobos
• Four
bi-directional variable speed rotating gobos
• Standard and
optional LithoPatterns® high resolution glass gobos deliver
customizable, near photo-quality image projection
• Variable
strobe • Optional narrow angle lens

CONSTRUCTION

• High resolution microstepping motor control for smooth motion at
all speeds

• Computer designed optical components for maximum light efficiency

• Full cutaway access to optical system for service and cleaning

• Mirror head pan axis may be manually adjusted ± 22.5° • Interlocked
rear lamp replacement system for easy access

• External lamp position adjustment controls

• Performance-oriented exterior design prevents stray light
scatter
• Low noise, high efficiency cooling system
• Power
factor correction
• Recessed power switch with circuit
breaker
• Break-resistant mirror

OPERATION
• LWR and DMX-512 control protocol
• Remote lamp
enable • Remote cooling system shutdown • 200V – 240V

MECHANICAL SPECIFICATIONS
• Height: 1067mm (42 in.) • Width:
413mm (16.3 in.) • Depth: 366mm (14.4 in.) • Weight: 46kg (101 lbs.)
