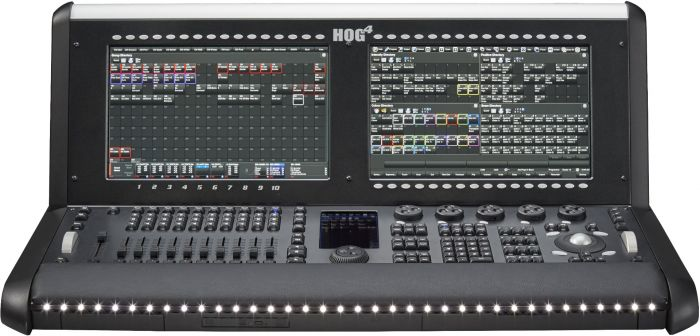

Hog 4 Console
Manufacturer Description
The flagship console of the Hog family, Hog 4 is designed for the largest stadium shows, theme park installations and concert tours. Discontinued in 2019.
Input and Output Connections
Mains in: V-Lock style locking IEC 320 connector (5A/250V rated cable supplied) 100-240 VAC, 3.2-2A, 50-60 Hz 1 x 5x20mm 5A T fuse
MIDI Connections: MIDI - Input, Output, and Thru Ports
LTC In: 3-pin XLR Linear Timecode Input
Display Connections: 3 x DVI-I single link female connectors
Ethernet: 2 x Neutrik Ethercon; Gigabit Ethernet port
USB: Universal Serial Bus 2.0 ports (6 rear, 1 inside front utility tray, 1 inside armrest)
DMX out: 8 x Neutrik 5 pin female XLR Galvanized Isolated
Keyboard: Built-in Miniature QWERTY keyboard
Power, Weight and Dimensions
Power: 300W
Weight: 75 lbs (34 kg)
Dimensions with Screen Down: 40.5” (1028.7mm) wide x 28.49” (723.7mm) deep x 6.49” (164.8mm) high
Dimensions with Screen Up: 40.5” (1028.7mm) wide x 28.49” (723.7mm) deep x 16.43” (417.4mm) high
- Brand: High End
- Lighting Control - Device Type: Control Console
- Lighting Control - Control Protocol: DMX
- Lighting Control - Output Capacity: 5,632-10,240 (11-20 Universes)
- Lighting Control - Monitors: Internal & External Supported
- Lighting Control - Motorized Faders: Yes
- Lighting Control - Onboard Visualizer: Yes
- Lighting Control - Power: Auto-Switching 120-240v 50-60Hz
